860Mhz-960Mhz Waterproof Long Reading Distance PET UHF Rfid Windshield Lable/ Sticker

new products

latest news

860Mhz-960Mhz Waterproof Long Reading Distance PET UHF Rfid Windshield Lable/ Sticker

RFID custom windshield tags offer a more accurate and secure way to allow access into various locations like a gated community, company/corporate secured parking, or even a car wash. The inlay utilizes passive technology and is encapsulated between thin layers of polypropylene adding human readable printing to one side and a windshield-compatible adhesive to the other.
  • item no.:

    car stickers for car
  • lead time:

    7-8 working days
  • product orgin:

    China
  • shipping port:

    Shenzhen,Hongkong
  • payment:

    T/T,Western Union, PayPal
  • color:

    Customized
  • MOQ:

    100
  • product details

RFID CUSTOM WINDSHIELD TAG

RFID Custom Windshield Tags offer a more accurate and secure way to allow access into various locations like a gated community, company/corporate secured parking, or even a car wash. The inlay utilizes passive technology and is encapsulated between thin layers of polypropylene adding human readable printing to one side and a windshield-compatible adhesive to the other. Unlike other windshield tags on the market, the RFID Windshield Tag utilizes passive RFID UHF technology offering a more economical option to the active windshield tags available. Encased between thin layers of polyester, the specialized inlay doesn't require a standoff to read either through or on a glass windshield. A tamper-evident option with strategically placed slits in the label and adhesive layers is also available at no additional cost.

Specialty RFID labels take advantage of sub-surface printing wherein the printed media has a protective covering. In order to remove the copy from a label, one would have to destroy the label itself.

parking stickers

WHY BUY THIS TAG?

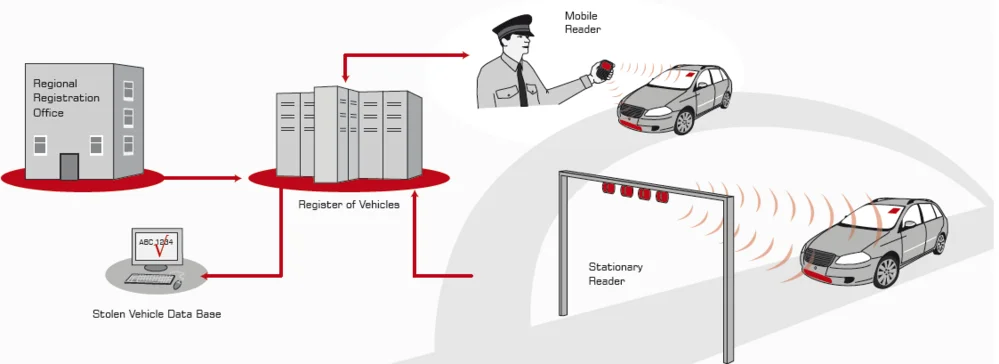

Controlling vehicle access to individual locations – whether it's corporate facilities, gated communities or downtown parking lots – can be a challenge. Eliminate the need for on-site staff and the hassle of stopping for a card reader with Vulcan RFID Custom Windshield Tags. The destructible option uses strategically placed slits to ensure that it is nearly impossible to remove the tag from a windshield without destroying it, preventing unwanted tag transfer to unauthorized vehicles.

uhf adhesive sticker manufacturer

Features:
1. Specialized inlays read well through windshield glass.
2. Read ranges of 30+ feet

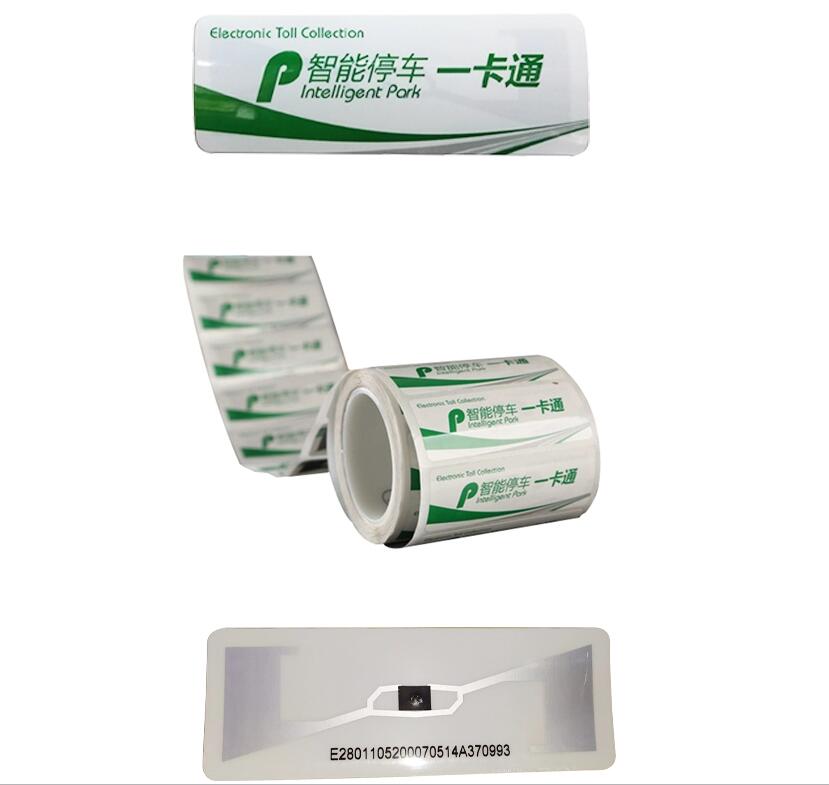

3. Customized printing
4. Destructible option prevents unauthorized vehicles from using tags transferred from authorized vehicles.



Technical Specification:

 Material

 Paper, PVC

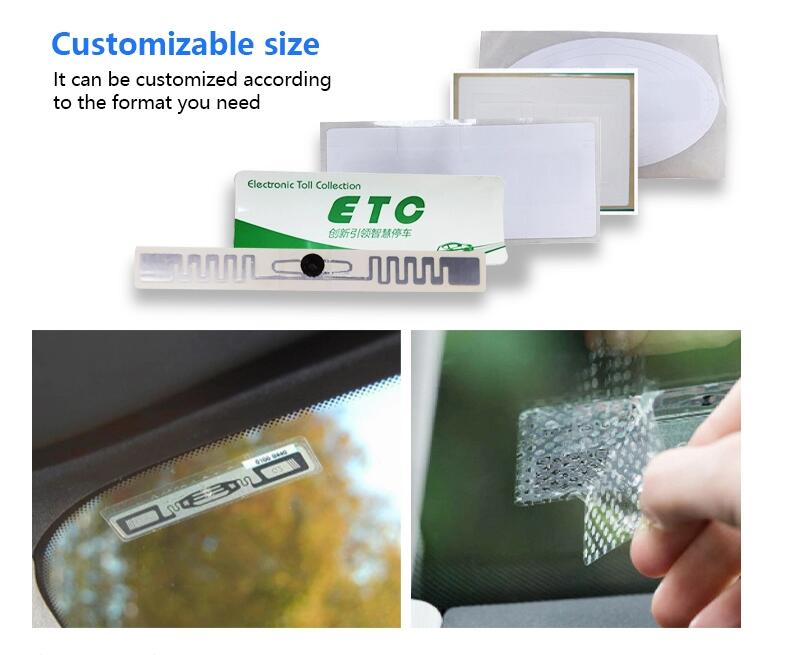

 Dimension

 102*76mm, 100*50mm, 99*24mm,

 73*23 mm, 86*54mm

 Optional craft

 One side or two side customised printing

 Feature

 Waterproof, printable, long range up to 6m

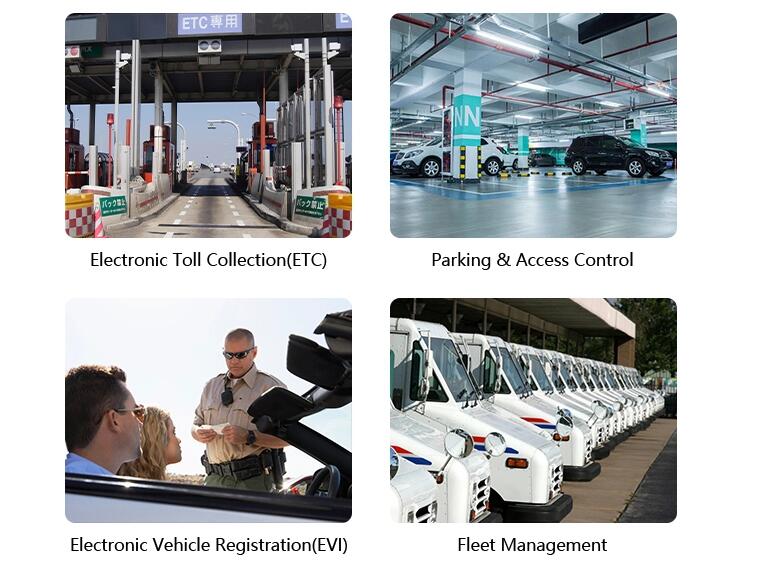

 Application

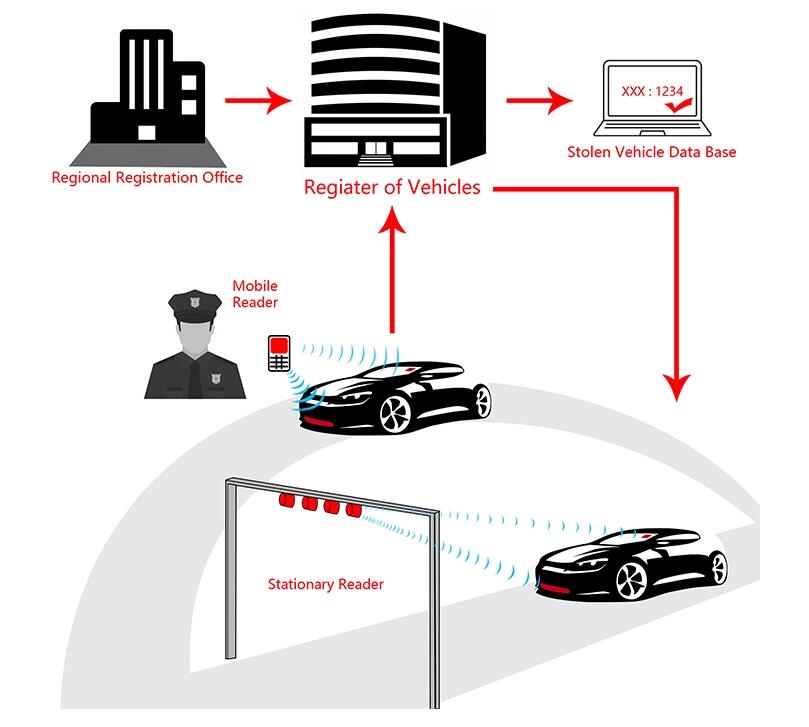

 Widely used for vehicle, car access management in parking lot, electronic toll   collection in high way, etc

 installed inside car windshiled

 Frequency

 860-960mhz

 Protocol

 ISO18000-6c , EPC GEN2 CLASS 1

 Chip

 Alien h3, h4, monza 4, monza 5

 Read Distance

 1m- 6m

 User memory

 512 bits

 Reading Speed

 < 0.05 seconds
 Valid Using lifetime  > 10 years

 Valid Using times

 >10,000 times

 Temperature

 -30 ~ 75 degrees

car stickerswindshield parking stickerswindshield parking stickers
