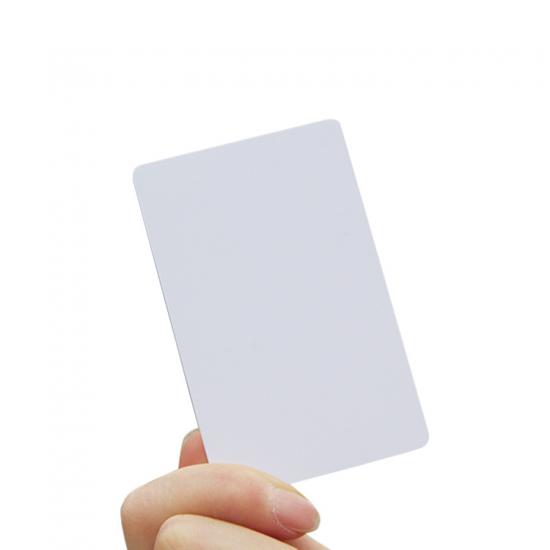

Blank White T5577 programmable rfid card For Access Control

The T5577 card consists of a 330BIT chip and an inductive antenna. It is packaged in a standard PVC card. The chip and antenna have no exposed parts. The card is close to the surface of the reader at a certain distance (usually 5-10mm), and the data is read and written by the transmission of radio waves.
  • item no.:

    T5577 Blank Card
  • lead time:

    7-8 working days
  • product orgin:

    China
  • shipping port:

    Shenzhen,Hongkong
  • payment:

    T/T,Western Union, PayPal
  • color:

    Customized
  • MOQ:

    500
  • product details

Blank White T5577 programmable rfid card For Access Control

The T5577 card is also called a radio frequency card, and the radio frequency card is a type of card in a smart IC card.
The T5577 card consists of a 330BIT chip and an inductive antenna. It is packaged in a standard PVC card. The chip and antenna have no exposed parts. The card is close to the surface of the reader at a certain distance (usually 5-10mm), and the data is read and written by the transmission of radio waves.

Application: Mainly used in telecommunications, banking, securities, insurance, transportation, industry and commerce, finance, real estate, health, logistics, shopping malls and other sectors of the community preferred products.

Product Name
Blank White T5577 programmable rfid card For Access Control
Material
PVC / ABS / PET / PP
Size
CR80 Standard Size 85.5*54mm
Thick
0.86mm
Craft
Signature panel, magnetic strip, barcode, embossed number, metallic printing. QR code printing
Protocol
ISO11784


Chip Parameter
1. Working frequency: 125KHZ
2. Memory capacity: 363bits, 11 partitions, 8-digit password
3. Reading and writing distance: 3-10cm
4. Wiping life: more than 100,000 times
5. Data retention time: 10 years



RFID Blank cards
