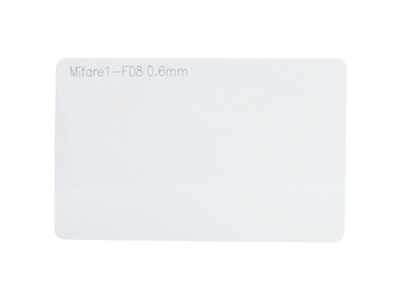

F08 Blank Plastic PVC Cards 13.56mhz rewritable rfid card
Material
|
PVC
|
Size
|
85.6*54mm
|
Thickness
|
0.84mm
|
Printing
|
White blank with glossy finish for thermal printer
|
Chip
|
F08
|
Frequency
|
13.56Khz
|
Color
|
White
|
FM11RF08 (F08) is according to ISO14443 Type A developed by Shanghai FuDan Microelectronics Co., Ltd.The maximum communication rage between the reader and contactless card is approximately 10cm.
FM11RF08 also has a very high security performance with the encryption and communication circuit, and is a true multi-application smart card with the functionality of a processor card realized with hardware logic.
So FM11RF08 can be especially tailored to meet the requirements of a payment card which can be used for ticketing systems in public transport and comparable application.
Feature:
* Mutual three pass authentication (ISO/IEC DIS 9798-2)
* Contactless transmission of data and supply energy (no battery needed)
* Operating distance: Up to 100mm (depending on antenna geometry)
* Operating frequency: 13.56 MHz
* Data transfer: 106 kbit/s
* Anticollision
* Typical ticketing transaction: < 100 ms (including backup management)
Application:
Payment
Access Control
Time Attendance
Hotel Key Card
Public transportation
Access control
Event ticketing
Gaming & identity
