item no.:
UHF Animal Ear Taglead time:
7-8 working daysproduct orgin:
Chinashipping port:
Shenzhen,Hongkongpayment:
T/T,Western Union, PayPalcolor:
CustomizedMOQ:

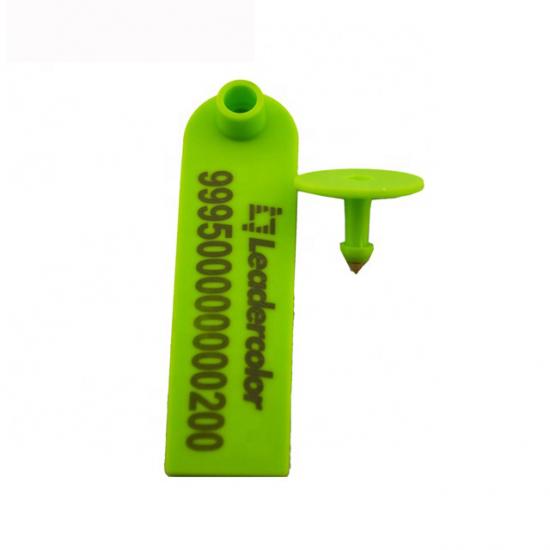

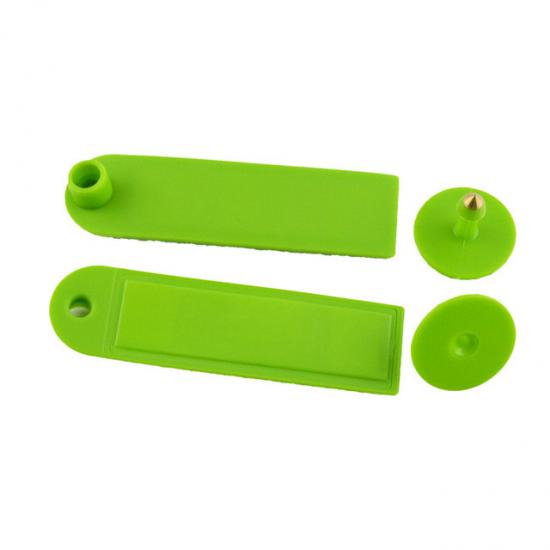

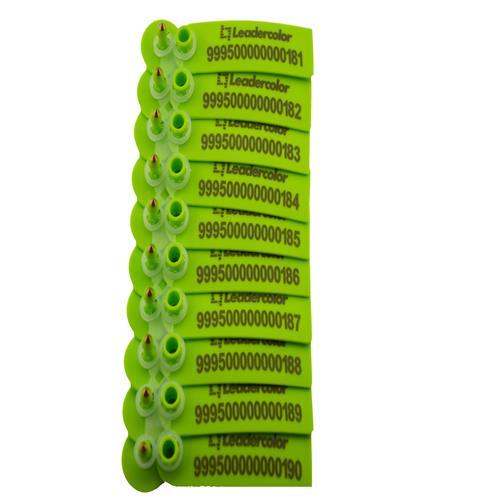

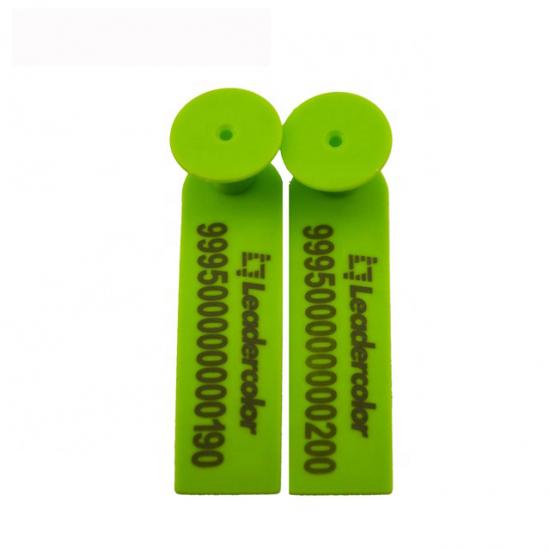

1002796A UHF RFID Ear Tag is designed for livestock management which is effective to keep tracking of livestock, such as sheeps and deers. It helps ranchers to manage their sheeps easily and time-saving, not only on counting sheep numbers, but also record their vaccine, growth, weight and so on.
Description
|
RFID Parameter |
|
|
Model No. |
2796A |
|
Type |
Passive UHF RFID Animal Tag |
|
Protocol |
ISO/IEC 18000-6C, EPC Class1 Gen2 |
|
Frequency |
Worldwide 840-960Mhz, US 902-928mhz, EU 865-868Mhz |
|
Chip |
Alien Higgs-3 |
|
Memory |
EPC 96bits |
|
|
TID 64bits |
|
|
User 512bits |
|
Read&Write |
Supported |
|
Read Range |
1-6meters adjustable(reader and environment dependent) |
|
Data retention |
10years |
|
Programming Cycles |
100,000 cycles |
|
Anti-collision |
Support multiple tags reading |
|
Physical Parameter |
|
|
Color |
Orange/green/custom |
|
Size |
Tag: 96×27.5×13.5mm/3.78×1.08×0.53inch (L×W×T) Stud: Dia 29*22.8mm/Dia1.15×0.9inch (short) Stud: Dia 29*24.4mm/Dia1.15×0.96inch (long) |
|
Antenna Material |
PET+ Aluminum Etching |
|
Surface Material |
TPU, soft, environmental friendly and non-toxic |
|

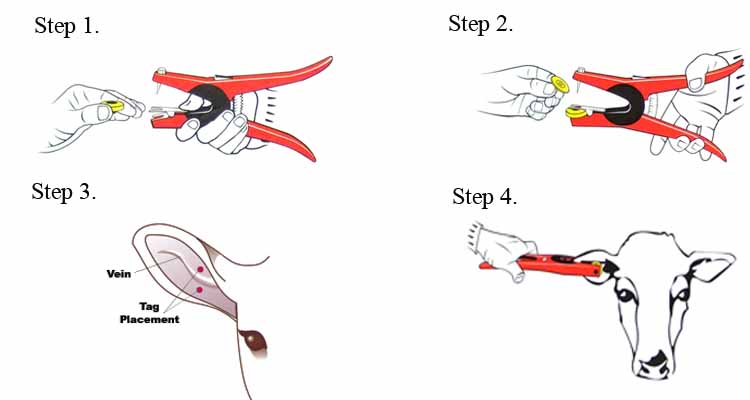

Installation |
Ear Tag Plier |
|
Operating temperature |
-20℃ ~ +80℃ |
|
Operating humidity |
20% ~ 90%RH |
|
Package |
Ear tag&stud/set, 100sets/bag,10bags/carton |
|
Customized Service |
Laser printing, EPC Pre-written, Color, Laser Printing, Chip&Inlay |
Application
l Livestock animal identification
l Sheep, pigs and dog’s tracking
l Intelligent cow management
RFID tag that can be attached to an animal's ear and operating at. UHF is presented. ... tention is now turning to the use of UHF tags for livestock identifi- cation.
An ear tag is a plastic or metal object used for identification of domestic livestock and other animals. If the ear tag uses Radio Frequency Identification Device (RFID) technology it is referred to as an electronic ear tag. Electronic ear tags conform to international standards ISO 11784 and ISO 11785 working at 134.2 kHz, as well as ISO/IEC 18000-6C operating in the UHF spectrum. There are other non-standard systems such as Destron working at 125 kHz.
RFID United is a leading supplier of animal identification products like RFID Animal Injectable Tags, Animal Transponder, animal visual tags, animal visual RFID tags in Asian and Pacific area. We provide professional pet ID microchips, animal electronic ear tags, readers, handheld equipment and system integration. All our animal identification products are developed and produced based on 134.2 kHz ISO11784/85 FDX-B standards.
RFID animal and livestock tags Identify and track animals, livestock, fish, and pets using RFID ear tags or injectable RFID ampoule tags. RFID ear tags can be custom printed with tag data, logo, ranch name, and are available in multiple colors. ISO standard UHF 915 MHz RFID cattle tags are the most innovative RFID tags in livestock management industry, capable of reading multiple animals simultaneously with an unparalleled read range of 7 meters. Our livestock RFID tags even have the option to tune the range down to suit needs at feed stations as well.
What Animals Use Ear Tags? Sheep, goats, cattle, and pigs most often will have ear tags. While some herd animals, like cattle, are identified individually, other animals, like sheep and goats, are typically identified by herd. Some animals may require more than one tag.
RFID requires no line-of-sight so you can scan many tags in seconds even while ... performance Gen2 UHF RFID label specially designed for jewelry tagging.
Smart NFC or RFID chipped mini-cards are the ultimate addition to wristbands for events. RFID wristband technology is set to work hard to ensure your event is a success. Managing "free-flow" events can be challenging. With mini-card wristbands, you gain full control over who gets in and where. Plus you have the flexibility to create designated areas for your staff, VIPs or performers only. Choosing RFID wristbands for events means that you benefit from all the magic an RFID chip got to offer. RFID mini-cards enable cashless payment, helping to create a worry-free environment for event-goers. Hand in hand this improves the event experience, reduces queues and increases profits. Win-win for all.
ICODE SLIX2 IC (ISO 15693) chip is the best suitable and widely available in the world, and guarantees long life. The data retention (=ability to hold stored data) of the chip is considered to be one of the best.
